UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

U PVC Pipe are ideal for transportation and distribution of water in households including potable water, industrial process lines, saltwater lines, swimming pools, pipes used for hand pumps, and in down-take lines in plumbing systems.

  • 1.Delivery: 10-30 days depending on the total quantity.
  • 2.Packing: 3/6/9m/ Pcs for straight, with plain ends.
  • 3.CO (Certificate of Origin): China, CO could be provided by free.
  • 4.Products Inspection: Raw material, production process, delivery or third-party factory inspection
  • 5.MOQ: Trial Order or 1*20ft containers by mixed loading.
Send E-mail Get Price

Introduction

Specifications

Application

Download

Quick Details of UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

Products details information
Product name UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
Brand Bingo pipeline(Customer brand is available)
Dia Ranges DN20-630mm(1/2 inch-24 inch)
Pressure Class SCH40/ SCH80
Raw material U PVC...
Application U PVC Pipes& fittings for drinking water, fresh water, portable water...
Color Grey, others colors is option
Standards ASTM D1785/D2665... ...
Matching products U PVC fittings, Solvent Cement fittings, Rubber Ring Joints, Flanges, Glue and tools, etc.
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty 50 years with normal use
Certificates ISO9001, OHSAS 18001, ISO14001,CE...
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection
Service Research, Design, manufacture, Test, Sales, Solution Providing, After-sale service
Management Effective 8S Management System
No. of employees More than 300 people

Welcome customers to visit the factory, or third party factory inspection is acceptable.

Description of UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

Bingo U PVC Pipes are Manufactured in accordance with ASTM D 1785 standards, these pipes are available in schedule 40 & 80 series, with a standard lengths of 3 and 6 meters, in plain or threaded ends options.

ASTM D1785 Solvent Weld PVC Pipe product line is manufactured to meet the needs of residential, commercial, & industrial plumbing systems, and other pressure applications. With top-quality raw materials and modern processing technology, our ASTM D1785 pipe meets all industry standards in addition to our own rigorous quality control standards.

Advantages of CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

1. Chemical resistance: U PVC pipes have excellent chemical resistance which allows the transportation of many acids, alkalis and chemical concentrates without fear of corrosion and environmental pollution.

2. Abrasion resistance: UPVC pipes offer good resistance to abrasion and erosion from aggressive slurries, which can rapidly damage steel or other traditional pipe materials.

3. Smooth bore: The exceptionally smooth bore results in low friction head losses and also inhibits the formation of scale, with consequent savings in pump energy consumption and reduced pressure drops.

4. Light weight: At 5 times lighter than steel pipe, UPVC pipes are much easier to handle, especially during installation at site.

5. Easy to join: Solvent welding gives fast and trouble free installation and allows simple modifications to existing systems.

Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Specification of U PVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 Notes:
  • 1. These dimensions are for estimating purposes only.
  • 2. All dimensions are in inches [Millimeter] unless otherwise
  • 3.ASTM Pressure Rating @ 23°C and includes 2:1 safety factor.
  • 4.Internal diameter calculated using nominal outside diameter and minimum wall thickness.
  • 5.1 Bar = 14.504 PSI
ASTM D1785 - Standard Specification for Poly(Vinyl Chloride) (PVC) Plastic Pipe, Schedules 40, 80*
Dimension In Inch
Nominal Size Outside Diameter (Inch) SCH 40 SCH 80
Wall Thickness (in) Internal Diameter Pressure Rating Wall Thickness (in) Internal Diameter Pressure Rating
inch Min (in) Max (mm) Max (in) Min (in) Max (in) Weight (kg/m) ID (in) (PSI) Min (in) Max (in) Weight (kg/m) ID (in) (PSI)
 1/2 0.840 0.004 0.844 0.109 0.226 0.246 0.622 600 0.147 0.167 0.314 0.546 850
 3/4 1.050 0.004 1.054 0.113 0.233 0.326 0.824 480 0.154 0.174 0.425 0.742 690
1 1.315 0.005 1.320 0.133 0.268 0.484 1.049 450 0.179 0.200 0.627 0.957 630
1 1/4 1.660 0.005 1.665 0.140 0.281 0.656 1.380 370 0.191 0.214 0.864 1.278 520
1 1/2 1.900 0.006 1.906 0.145 0.289 0.783 1.610 330 0.200 0.224 1.047 1.500 470
2 2.375 0.006 2.381 0.154 0.305 1.053 2.067 280 0.218 0.244 1.448 1.939 400
2 1/2 2.875 0.007 2.882 0.203 0.398 1.671 2.469 300 0.276 0.309 2.209 2.323 420
3 3.500 0.008 3.508 0.216 0.424 2.186 3.068 260 0.300 0.336 2.956 2.900 370
4 4.500 0.009 4.509 0.237 0.464 3.111 4.026 220 0.337 0.377 4.320 3.826 320
5 5.563 0.010 5.573 0.258 0.289 4.213 5.047 190 0.375 0.420 5.988 4.813 290
6 6.625 0.011 6.636 0.280 0.550 5.469 6.065 180 0.423 0.484 8.236 5.779 280
8 8.625 0.015 8.640 0.322 0.632 8.234 7.981 160 0.500 0.560 12.510 7.625 250
10 10.750 0.015 10.765 0.365 0.717 11.671 10.020 140 0.593 0.664 18.544 9.564 230
12 12.750 0.015 12.765 0.406 0.797 15.429 11.938 130 0.687 0.769 25.519 11.376 230
14 14 0.015 14.015 0.437 0.859 18.251 13.126 130 0.750 0.840 30.600 12.500 220
16 16 0.019 16.019 0.500 0.981 23.864 15.000 130 0.843 0.944 39.340 14.314 220
18 18 0.019 18.019 0.562 1.101 31.393 16.876 130 0.937 1.049 51.276 14.126 220
20 20 0.023 20.023 0.593 1.163 35.432 18.814 120 1.031 1.155 60.226 17.938 220
24 24 0.031 24.031 0.687 1.347 49.317 22.626 120 1.218 1.364 85.451 21.564 210
Pressure rating based on water at 23℃ for unthreaded pipes.

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Applications of U PVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

  • Hot- and cold-water plumbing distribution, residential and commercial
  • Reclaimed water piping
  • Hydronic piping and distribution (radiators, fan coils, etc.)
  • Suitable for many industrial and process piping applications
UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

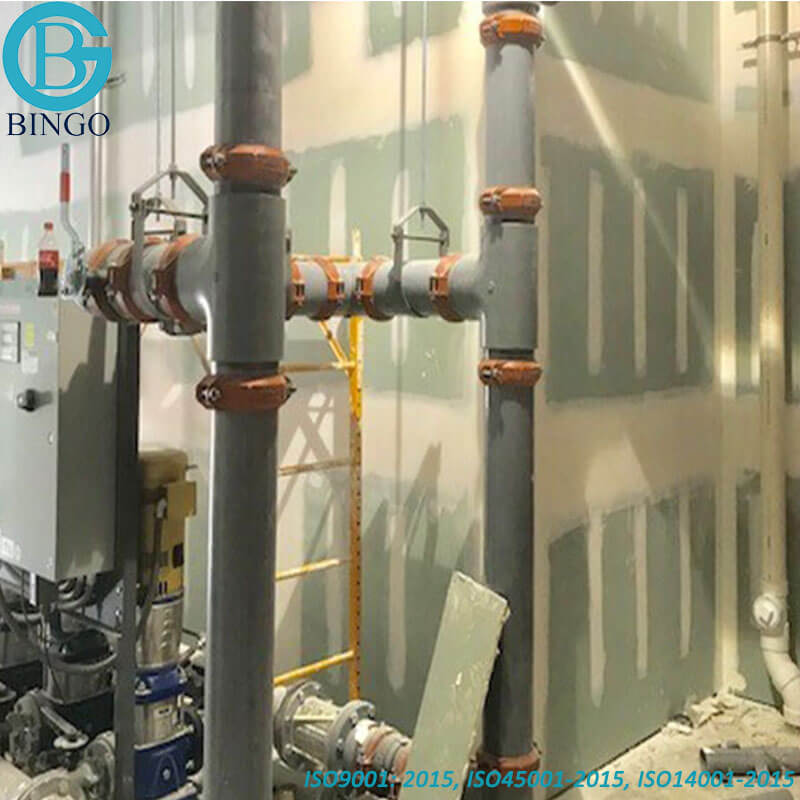

U PVC Pipes for Chemical Plant Installations U PVC Pipes for Chemical Industry
UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
U PVC Pipes for Chemical Plant Installations U PVC Pipes for Chemical Engineering

UPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
