PP Compression Fittings for HDPE Pipe

Polypropylene Compression Fittings are made from the material polypropylene and are available in sizes from OD20mm to OD110mm diameter. The Pressure Rate PN10 and PN16 are available.

  • 1.Delivery: 10-30 days depending on the total quantity.
  • 2.Packing: Packaged by cartons or bags
  • 3.CO (Certificate of Origin): China, CO could be provided by free.
  • 4.Products Inspection: Raw material, production process, delivery or third-party factory inspection
  • 5.MOQ: Trial Order or 1*20ft containers by mixed loading.

Quick Details of Polypropylene(PP) compression fittings for polyethylene(PE) pipe

Products details information
Product name Polypropylene(PP) conpression fittings for polyethylene(PE) pipe
Brand Bingo pipeline(Customer brand is available)
Dia Ranges DN20-110mm(1/2 inch-4 inch)
Pressure Class from PN10 to PN16
Raw material Polypropylene(PP)
Application HDPE Fittings for water, oil and gas, mining, marine, drainage, chemincal, Irrigation, fire fighting...
Color Black or Blue
Category Quick connection fittings, Thread male and female fitting, tee, elbow, reducer, reducer tee, cap...
Matching products HDPE pipe fittings, Customized PE fittings, DI/ Steel backing ring flanges, Valves, water meter, flow gauge, welding machines and tools, etc.
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty 50 years with normal use
Certificates ISO9001, OHSAS 18001, ISO14001,CE...
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection
Service Research, Design, manufacture, Test, Sales, Solution Providing, After-sale service
Management Effective 8S Management System
No. of employees More than 300 people

Welcome customers to visit the factory, or third party factory inspection is acceptable.

Description of Polypropylene(PP) compression fittings for polyethylene(PE) pipe

The compression fittings include the elbow, tee, coupling, reducers, female & male adaptor, female and male tee, female and male elbow, and clamp saddle, ball valves, and installation tools.

The clamp saddles are the idea solution for branching from existing pipelines for water and irrigation applications.

The kind of Polypropylene Compression Fittings are designed to connect two lengths of Polyethylene (PE) pipe or PVC pipes, which could be be done simply and quickly without need for glue or solvent welding, and do not need to use any welding machines.

Our PP Compression Fittings range have a heterophasic black polypropylene body suitable at high temperatures, with a polyacetal resin clinching ring and a blue dyed PP nut offering suitability to UV rays and system heat. These fittings also use an acrylonitrile rubber or lip seal gasket, based on the different fitting diameters.

Our PP Compression Fittings is made from the material Polypropylene and subject to the system pressure, has a working temperature of -10°C to +45°C, being manufactured to the highest quality and are fully matched for compatibility and manufactured in accordance with the most stringent international standards.

Polypropylene is a lightweight pipe material which offers a quick installation and use for fluid conveyance at high pressures for applications in the thermohydraulic sector, ideal for PE Polyethylene, PVC pipes and irrigation pipework systems.

Polypropylene(PP) compression fittings for polyethylene(PE) pipe

Where applicable pressure rating information can be found in the product details of each individual item alongside size and dimensions.

Our PP Compression Fitting systems are specially designed to meet the harsh climate conditions, These fittings are compatible with all PE80 and PE100 pipes, according to EN12201. We places emphasis on Quality, Reliability and Economy. Strict-in-house Quality Control is backed by testing through independent laboratories of international repute to certify the quality of the Fittings.

Advantages of Polypropylene(PP) compression fittings for polyethylene(PE) pipe

Produced from the primer row material, suitable for drinking/ portable water applications.

Precise threads, according to EU standards.

Excellent long term pressure resistance

High quality O-Ring, coated with silicone

Strong clinching ring

Female fittings are with reinforcing metal ring

Fittings nut has 5 threads, providing stronger connection and better pull-out characteristics

Safe and durable, fast and easily connected.

Perfect water tightness, locking nut for a clinching system.

Simple insertion of the tube in the fitting.

High resistance to temperature and ultraviolet shocks.

Specification of Polypropylene(PP) compression fittings for polyethylene(PE) pipe

Item Fittings Types Specified Fittings Diameter(mm) Pressure Rates(PN-Bar) Manufacturing Process
7 PP Compression Fittings Quick Coupling/Coupler OD20-110mm PN16, PN10 Injection Molding
Quick Reducer/ Reducing Coupler OD20-110mm PN16, PN10
Quick Tee OD20-110mm PN16, PN10
Quick Reducer Tee OD20-110mm PN16, PN10
Quick 45 deg elbow OD20-110mm PN16, PN10
Quick 90 deg elbow OD20-110mm PN16, PN10
Female coupler OD20-110mm PN16, PN10
Male coupler OD20-110mm PN16, PN10
Quick Female 90 deg elbow OD20-110mm PN16, PN10
Quick Male 90 deg elbow OD20-110mm PN16, PN10
Female Tee OD20-110mm PN16, PN10
Male Tee OD20-110mm PN16, PN10
Quick Flanges OD20-110mm PN16, PN10
Ball Valves OD20-63mm PN16, PN10
Saddle Clamp OD20-250mm PN16, PN10

 Polypropylene-PP Compression fittings DN20-110mm PN10 to PN16 for Water Application

PP(Polypropylene) Compression Fittings for HDPE/ PVC Pipes Connection
PP Compression Fittings-Coupler PP Compression Fittings-Reducing Coupler PP Compression Fittings-Tee PP Compression Fittings-Reducing Tee PP Compression Fittings-Elbow
PP Compression Fittings-Coupler PP Compression Fittings-Reducing Coupler PP Compression Fittings-Tee PP Compression Fittings-Reducing Tee PP Compression Fittings-Elbow
PP Compression Female Threaded Adaptor PP Compression Male Thread Elbow PP Compression Female Thread Elbow PP Compression 90 Degree Male Threaded Tee PP Compression 90 Degree Female Threaded Tee
PP Compression Female Threaded Adaptor PP Compression Male Thread Elbow PP Compression Female Thread Elbow PP Compression 90 Degree Male Threaded Tee PP Compression 90 Degree Female Threaded Tee
PP Compression Male Threaded Adaptor PP Compression Flanged Adaptor PP Compression Cap PP Compression Fittings-Ball Valve Polypropylene Clamp Saddle
PP Compression Male Threaded Adaptor PP Compression Flanged Adaptor PP Compression Cap PP Compression Fittings-Ball Valve Polypropylene Clamp Saddle

Please Contact us to Get More Details, Send Email: sales@bingopipes.com or Mobile:(WhatsApp): +86 155 15596408.

Applications of Polypropylene(PP) compression fittings for polyethylene(PE) pipe

  • HDPE Drinking water supply
  • HDPE Irrigation Pipeline system
  • HDPE Portable water pipes
  • PVC pipes system
  • Landscaping project
Polypropylene(PP) compression fittings for polyethylene(PE) pipe Polypropylene(PP) compression fittings for polyethylene(PE) pipe
HDPE Pipes for Minging Irrigation HDPE Pipes for Building Construction
Polypropylene(PP) compression fittings for polyethylene(PE) pipe Polypropylene(PP) conpression fittings for polyethylene(PE) pipe

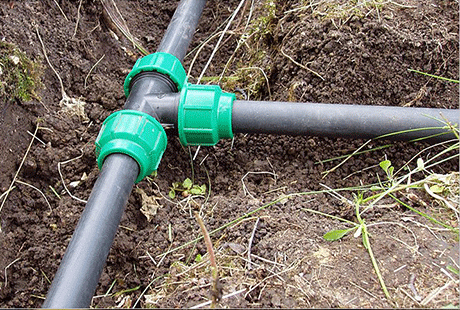

PP Compression Fitting for Water Supply Poly Compression Fitting for Irrigation System

Polypropylene(PP) compression fittings for polyethylene(PE) pipe
