PE100 PN25 SDR7.4 HDPE Pipes & Fittings
Bingo Manufacture PN25 SDR7.4 HDPE Pipes & Fittings for water, mining, chemical, fire fighting at cheap price, export to global market.
- 1.Delivery: 10-30 days depending on the total quantity.
- 2.Packing: 11.8m or 5.8m/ Pcs for straight, 100-200m by coils for DN20-90mm.
- 3.CO (Certificate of Origin): China, CO could be provided by free.
- 4.Products Inspection: Raw material, production process, delivery or third-party factory inspection
- 5.MOQ: Trial Order or 1*20ft containers by mixed loading.
Quick Details of PE100 PN25 SDR7.4 HDPE Pipes & Fittings
| Products details information | |
| Product name | PE100 PN25 SDR7.4 HDPE Pipes & Fittings |
| Brand | Bingo pipeline(Customer brand is available) |
| Dia Ranges | DN20-2000mm(1/2 inch-80 inch) |
| Raw material | PE100, PE80, PE4710, PE3608, PE100RC... |
| Application | drinking water, fresh water, drainage, mining, dredging, marine, industry, chemical... |
| Color | Black with blue stripes, blue or others colors |
| Standards | ISO 4427,EN12201, AS/NZS4130, ASTM 3035, DIN8074, GOST18599, DIPS, ASTM F714... |
| Matching products | HDPE pipe fittings, Customized PE fittigns,DI/ Steel backing ring flanges, Valves, water meter, flow gauge, welding machines and tools, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50 years with normal use |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE... |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection |
| Service | Research, Design, manufacture, Test, Sales, Solution Providing, After-sale service |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
Welcome customers to visit the factory, or third party factory inspection is acceptable.
Description of PE100 PN25 SDR7.4 HDPE Pipes & Fittings
Bingo Bingo pipeline is recognized as a leading manufacturer of quality HDPE (PE100) pipe systems in sizes ranging from 20mm to 2500mm, SDR33-SDR6. HDPE (PE100) pressure pipes are supplied in coils up to a diameter of 110mm with larger diameters supplied in straight lengths. Bingo pipeline is committed to using only the highest standard of PE100 raw materials to manufacture HDPE pipes and fittings.
Bingo pipeline state of the art pipe production and fabrication factory uses the latest technology and equipment, accompanied by our large manufacturing capacity we are able to reduce long lead times to ensure your project is delivered on time. We provide the Plastic pipe and fittings solutions to global markets more than 20 years experience.
| PE100 PN20 SDR9 HDPE Pipes & Fittings for Water | |||
 |
 |
 |
 |
Benefits of PE100 PN25 SDR7.4 HDPE Pipes & Fittings
Bingo HDPE pipe is well-suited for potable water supply applications. Beneficial properties of Bingo HDPE piping systems include:
Leak-free Fused Joints. Fused joints eliminate potential leak points and reduce installation time.
Chemical Resistance. Studies show that HPDE pipe will not corrode or tuberculate, maintaining flow velocities over the life span of the system.
Durability and Flexibility. HDPE pipe is a more durable and flexible pipe material with a bend radius up to 20 times the pipe diameter. This allows the HDPE pipe to conform to an imperfect installation path without the need to add costly fittings and excessive pipe joints.
Extreme Surge Tolerance. HDPE pipes are the most resistant to surge and fatigue of any potable water piping systems. HDPE pipe can handle much higher flow velocities which result in lower pressure surges compared to other potable water piping systems.
Temperature Resistance. HDPE pipe can handle fluid and environmental temperatures ranging from -40°F to 140°F, making HDPE water pipe suitable for use with hot or cold water in many different environments.
Installation. HDPE pipe is cheaper to install than other potable water piping systems. Could be installed with trench-less technologies (directional drilling, pipe bursting, slip-lining, and compression fit lining), making HDPE pipe the most commonly used piping material for trenchless installations, greatly reduce the amount of construction restoration, leading to a cost savings up to 65%.
Jointing methods that fit your multiple requirements
We provide complete system solutions with engineer support based on 20 years of experience in HDPE pipes projects worldwide. All pipes section are supplied with flanges connections and blind flanges to facilitate a quick assembly and increase the overall safety of your installation. To fit your unique projects requirements. Our HDPE pipes can be jointed using several methods from 20-2500mm, SDR21-SDR6, PN8-PN32:
Electrofusion welding fittings
Butt fusion welding fittings
Socket fusion welding fittings
Extrusion welding
Saddle welding fittings
Flange connection fittings
Quick fittings connection
We have completed HDPE Fittings and Welding Machine, tools to completed with our HDPE Pipe for your construction, One-stop supply, to meet your different requriement, save your cost and time, Please visit our HDPE Fittings Category and Welding Machine Category, Contact Us To get more details.
Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.
Specifications of PE100 PN25 SDR7.4 HDPE Pipes & Fittings
ISO 4427-2: Plastics piping systems. Polyethylene pipes & fittings for water supply – Part 2: Pipes
EN 12201-2: Plastics piping systems for water supply – Polyethylene – Part 2: Pipes
| OD mm | SDR9 PN20 | SDR7.4 PN25 | ||||
| S | ID | Kg/m | S | ID | Kg/m | |
| 25 | 2.9 | 19.1 | 0.20 | 3.6 | 17.8 | 0.23 |
| 32 | 3.8 | 24.5 | 0.32 | 4.6 | 22.8 | 0.38 |
| 40 | 4.7 | 30.6 | 0.50 | 5.7 | 28.5 | 0.59 |
| 50 | 5.9 | 38.2 | 0.78 | 7.2 | 35.7 | 0.93 |
| 63 | 7.4 | 48.2 | 1.24 | 9.0 | 45.0 | 1.47 |
| 75 | 8.8 | 57.3 | 1.76 | 10.7 | 53.5 | 2.08 |
| 90 | 10.6 | 68.8 | 2.54 | 12.9 | 64.2 | 3.00 |
| 110 | 13.0 | 84.1 | 3.79 | 15.8 | 78.5 | 4.48 |
| 125 | 14.7 | 95.6 | 4.90 | 17.9 | 89.2 | 5.78 |
| 140 | 16.5 | 107.0 | 6.14 | 20.1 | 99.9 | 7.25 |
| 160 | 18.8 | 122.3 | 8.02 | 22.9 | 114.2 | 9.48 |
| 180 | 21.2 | 137.6 | 10.15 | 25.8 | 128.4 | 11.99 |
| 200 | 23.6 | 152.9 | 12.53 | 28.6 | 142.7 | 14.81 |
| 225 | 26.5 | 172.0 | 15.86 | 32.2 | 160.5 | 18.74 |
| 250 | 29.4 | 191.1 | 19.59 | 35.8 | 178.4 | 23.13 |
| 280 | 33.0 | 214.0 | 24.57 | 40.1 | 199.8 | 29.02 |
| 315 | 37.1 | 240.8 | 31.09 | 45.1 | 224.8 | 36.73 |
| 355 | 41.8 | 271.4 | 39.49 | 50.9 | 253.3 | 46.65 |
| 400 | 47.1 | 305.8 | 50.14 | 57.3 | 285.4 | 59.22 |
| 450 | 53.0 | 344.0 | 63.46 | 64.5 | 321.1 | 74.95 |
| 500 | 58.9 | 382.2 | 78.34 | 71.6 | 356.8 | 92.53 |
| 560 | 66.0 | 428.1 | 98.27 | 80.2 | 399.6 | 116.07 |
| 630 | 74.2 | 481.6 | 124.38 | 90.2 | 449.5 | 146.90 |
| 710 | 83.6 | 542.8 | 157.97 | 101.7 | 506.5 | 186.58 |
| 800 | 94.2 | 611.6 | 200.56 | - | - | - |
| 900 | 100 | 700 | 256 | - | - | - |
| 1000 | 111.11 | 777.78 | 310.12 | - | - | - |
| 1200 | 133.33 | 933.34 | 446.57 | - | - | - |
| 1400 | - | - | - | - | - | |
| 1600 | - | - | - | - | - | - |
| 1800 | - | - | - | - | - | - |
| 2000 | - | - | - | - | - | - |
PE100 High Density Polyethylene (HDPE) Pipes & Fittings PN20 SDR9
Please find below HDPE pipes for different applications in accordance with different standards. Please clinck to view detailed products and specifications.
| HDPE Products Series | ||||
| HDPE Pipe | Standatd | Photo | ||
| Size | DN20-2000mm(1/2 inch-80 inch) |  |
||
| HDPE Pipe for Water SDR9-SDR6 PN20-PN32 | HDPE Pipe for Drinking Water | |||
| HDPE Pipe for Industry | ||||
| HDPE Pipe for Mining | ||||
| HDPE Pipe for Drainage | ||||
| HDPE Pipe for Marine | ||||
| HDPE Pipe for Fish Farming | ||||
| HDPE Pipe for Irrigation | ||||
| HDPE Pipe for Cable Protection | ||||
| Standatd | ISO 4427 | |||
| EN12201 | ||||
| AS/NZS4130 | ||||
| ASTM 3035 | ||||
| DIN8074 | ||||
| GOST18599 | ||||
| DIPS | ||||
| ASTM F714 | ||||
Other specifications have not been shown on our dimension chart, please CONTACT US for more information
Please Send Email: sales@bingopipes.com or Mobile:(WhatsApp): +86 155 15596408.
Applications of PE100 PN25 SDR7.4 HDPE Pipes & Fittings
- Mining – above and below ground installations
- Mine water supply
- Slurry lines
- Irrigation supply
- Mineral slurry pipelines
- Domestic water supply house service connections
- Vacuum and gravity sewer systems
- Sewer rising mains
- Sewage, effluent and waste water
- Submerged pipelines – for cable ducting, water and sewerage
- Trench-less pipelines installed by directional drilling, slip lining and pipe bursting methods
- Process pipe work
- Electric and telecommunication cable conduits
- Gas distribution
- Fire fighting applications
 |
 |
| HDPE Pipes for Process Water | HDPE Pipes for Municipal Water & Sewer |
 |
 |
| HDPE Pipes for Water Transportation | HDPE Pipes for Sewerage |
 |
 |
| HDPE Pipes for Mining Projects | HDPE Pipes for Slurry Dredging |
Please Contact us to Get More Projects Cases, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.
PE100 PN25 SDR7.4 HDPE Pipes & Fittings
-
- Below are the HDPE Pipe specification, Pressure rating, Thickness, Dimension chart in different standard for water and fuels gas application for your reference, Online preview and Download.
- Please contact us to get Products Catalog, Technical Data Sheet, GET QUOTATION and the LATEST PRICE LIST now, Email: sales@bingopipes.com. Mobile(WhatsApp): +86 155 15596408.
- ISO4427 HDPE pipes Metric Size and Dimension DownLoad
- EN 12201-2-2011 Pipe Series DownLoad
- ASTM 3035 and ASTM F 714 Iron Pipe Size (IPS) and Dimension Data Dimension in millimeter DownLoad
- ASTM 3035 and ASTM F 714 Iron Pipe Size (IPS) and Dimension Data in Inch size DownLoad
- Ductile Iron Pipe Size (DIPS) and Dimension Data DownLoad
- ASNZS 4130-2009 Pipe Series Standard Dimension Ratios (SDRs) DownLoad
- ISO4437-2 Plastics piping systems for the supply of gaseous fuels-Polyethylene (PE)- Part 2 Pipes DownLoad
- EN1555-2 Plastics piping systems for the supply of gaseous fuels-Polyethylene (PE)- Part 2 Pipes DownLoad
- ASTM D2513 IPS HDPE Gas Distribution Pipe DownLoad
- ASNZS 4130 Series Pipes -Gas(Nominal Outside Diameter Series) DownLoad

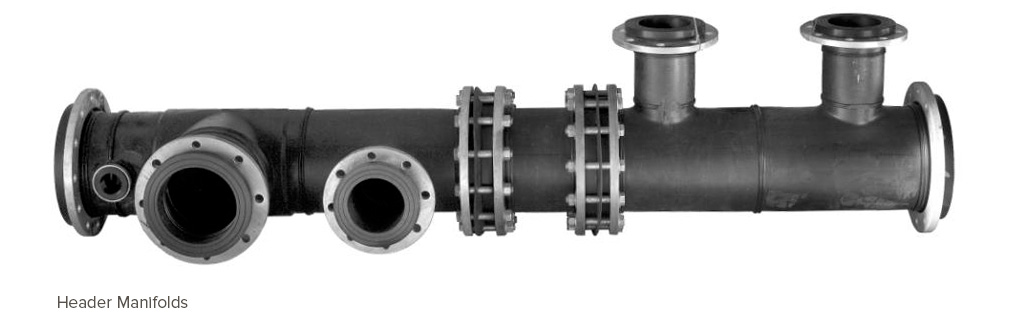

| Customized PE100 PN25 SDR7.4 HDPE Spool Pipe & Fittings | ||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
||||
 |
||||
Other CUSTOMIZED Fittings have not been shown on above chart, please CONTACT US for more information
Please Send Email: sales@bingopipes.com or Mobile:(WhatsApp): +86 155 15596408.
