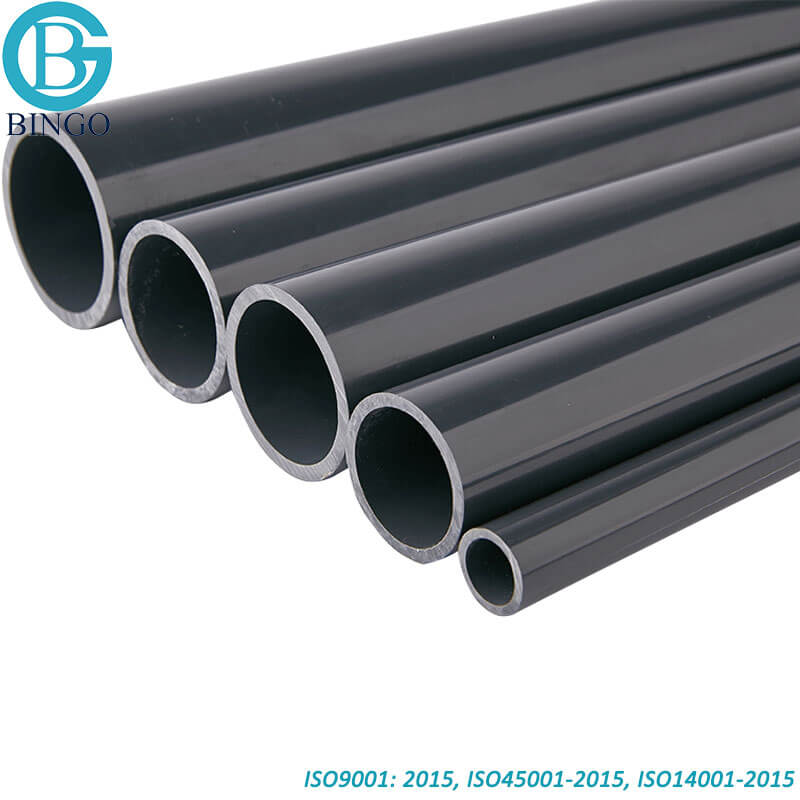

CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

CPVC pipes are one of the best substitutes for GI pipes for water supply and distribution in domestic and industrial applications.

  • 1.Delivery: 10-30 days depending on the total quantity.
  • 2.Packing: 3/6/9m/ Pcs for straight, with plain ends.
  • 3.CO (Certificate of Origin): China, CO could be provided by free.
  • 4.Products Inspection: Raw material, production process, delivery or third-party factory inspection
  • 5.MOQ: Trial Order or 1*20ft containers by mixed loading.
Send E-mail Get Price

Introduction

Specifications

Application

Download

Quick Details of CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

Products details information
Product name CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
Brand Bingo pipeline(Customer brand is available)
Dia Ranges DN20-630mm(1/2 inch-24 inch)
Pressure Class SCH40/ SCH80
Raw material C PVC...
Application C PVC Pipes& fittings for drinking water, fresh water, portable water...
Color Grey, others colors is option
Standards ASTM F 441...
Matching products C PVC fittings, Solvent Cement fittings, Rubber Ring Joints, Flanges, Glue and tools, etc.
Company/Factory Strength
Production Capacity 120*40ft containers/month
Sample Free sample could be provided
Quality QA & QC system, Ensure traceability of each process
Warranty 50 years with normal use
Certificates ISO9001, OHSAS 18001, ISO14001,CE...
Delivery time 5-30 days, depending on the quantity
Test/Inspection National Standard Laboratory/ Pre-delivery inspection
Service Research, Design, manufacture, Test, Sales, Solution Providing, After-sale service
Management Effective 8S Management System
No. of employees More than 300 people

Welcome customers to visit the factory, or third party factory inspection is acceptable.

Description of CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

Bingo ASTM F411 Solvent Weld CPVC Pipe product line is manufactured to meet the needs of residential, commercial, & industrial plumbing systems, and other pressure applications. With top quality raw materials and modern processing technology, our ASTM F411 pipe meets all industry standards in addition to our own rigorous quality control standards.

Bingo manufacture CPVC Pipe& Fittings by high grade raw material and the latest technology, making these ideal for hot and cold-water applications. These pipes can withstand higher temperatures as compared to any other plastic piping system. They can be used with solar and electric water heaters. We manufacture these pipes using a lead-free compound and hence are environmentally friendly.

Provide C PVC Pipes& Fittings Schedule 40 and Schedule 80 series which meet the requirements of ASTM F 441. These pipes are plain ended and are available in standard lengths of 3 and 6 meters with various pressure ratings.

Advantages of CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
Temperature upto 93°C Lowest Bacterial Growth Different Ranges Fire Resistant International Standards
CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
Smoothest Inner Surface CPVC Solvent for Tight Joints CPVC Solvent for Tight Joints 50+ Year Lifespan ISO9001 Certificated Factory
CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
Extreme Climate Resistant Lead-free and Environment-friendly Compound. Cost Effective and Easy Installation 25% Higher Pressure Rating Corrosion Free

Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Specification of CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

Notes:

  1. These dimensions are for estimating purposes only.
  2. All dimensions are in inches [Millimeter] unless otherwise specified.
  3. ASTM Pressure Rating @ 23° & 82°C and includes 2:1 safety factor.
  4. Internal diameter calculated using nominal outside diameter and minimum wall thickness.
  5. 1 Bar = 14.504 PSI
ASTM F 441 Specification for Chlorinated Poly (Vinyl Chloride) (CPVC) Plastic Pipe, Schedules 40 and 80
Nom. Pipe Size (in.) O.D. (in.) Schedule 40 Dimensions(in) Schedule 80 Dimensions(in)
Average I.D. Min. Wall Nom. Wt./Ft. Max. W.P Average I.D. Min. Wall Nom. Wt./Ft. Max. W.P
1/4 0.540 0.344 0.088 0.096 780 0.282 0.119 0.117 1130
3/8 0.675 0.473 0.091 0.128 620 0.403 0.126 0.162 920
1/2 0.840 0.602 0.109 0.190 600 0.526 0.147 0.238 850
3/4 1.050 0.804 0.113 0.253 480 0.722 0.154 0.322 690
1 1.315 1.029 0.133 0.371 450 0.936 0.179 0.473 630
1-1/4 1.660 1.360 0.140 0.502 370 1.255 0.191 0.654 520
1-1/2 1.900 1.590 0.145 0.599 330 1.476 0.200 0.793 470
2 2.375 2.047 0.154 0.803 280 1.913 0.218 1.097 400
2-1/2 2.875 2.445 0.203 1.267 300 2.290 0.276 1.674 420
3 3.500 3.042 0.216 1.660 260 2.864 0.300 2.242 370
3-1/2 4.000 3.521 0.226 1.996 240 3.326 0.318 2.735 350
4 4.500 3.998 0.237 2.363 220 3.786 0.337 3.277 320
5 5.563 5.016 0.258 2.874 190 4.768 0.375 4.078 280
6 6.625 6.031 0.280 4.164 180 5.709 0.432 6.258 280
8 8.625 7.942 0.322 6.268 160 7.565 0.500 9.506 250
10 10.750 9.976 0.365 8.886 140 9.493 0.593 14.095 230
12 12.750 11.889 0.406 11.751 130 11.294 0.687 19.392 230
14 14.000 13.073 0.437 13.916 130 12.410 0.750 23.261 220
16 16.000 14.940 0.500 18.167 130 14.213 0.843 29.891 220
18 18.000 16.809 0.562 22.965 130 16.014 0.937 37.419 220
20 20.000 18.743 0.593 29.976 120 17.814 1.031 45.789 220
24 24.000 22.544 0.687 37.539 120 21.418 1.218 64.959 210
ASTM Standard D1784 Material Equivalents: Cell Classification 23447 = CPVC Type IV Grade I = CPVC 4120

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Applications of CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80

  • Hot- and cold-water plumbing distribution, residential and commercial
  • Reclaimed water piping
  • Hydronic piping and distribution (radiators, fan coils, etc.)
  • Suitable for many industrial and process piping applications
CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
C PVC Pipes for Chemical Plant Installations C PVC Pipes for Chemical Industry
CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80 CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
C PVC Pipes for Chemical Plant Installations C PVC Pipes for Chemical Engineering

CPVC Pipe& Fittings ASTM Schedule Series SCH40 and SCH80
