20-160mm Socket Fusion Welding Machine

HDPE pipe and fittings welding machines provided by us are extensively used in different HDPE pipeline construction projects.

    • 1.Welding Control: Socket Fusion Welding Machine
    • 2.Welding Range: 20-160mm
    • 3.Application: HDPE/PP/PVDF Pipe and fittings
    • 4.Packing: Plywood Cases
    • 5.Warranty: 1 Year
    • 6.MOQ: 1 Set is available
    • 7.HS Code: 8515290000
Send E-mail Get Price

Introduction

Specifications

Application

Download

Quick Details of 20-160mm Fully Automatic Electro Fusion Welding Machine

Usage: 63-160mm Socket Fusion Welding Machine is suitable for welding PE PP PPR plastic pipe in all size. It is widely used to Agricultural, chemical, oil and gas pipelines, water supply pipes, drainage pipes etc, . All model machines can comply with the relevant ISO and DVS and Chinese welding standards.

20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings

Features of 20-160mm Fully Automatic Electro Fusion Welding Machine

1. Accurate temperature control system, high safety index, strong environment adaptation.

2. The heating plate is made of high quality aluminum alloy, with high thermal conductivity and strong oxidation resistance.

3. Solid structure, convenient and fast.

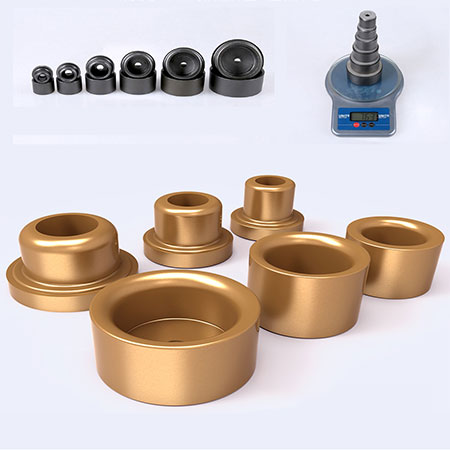

4. Hot melt die head adopts unique non-stick coating (PTFE) technology, long service life.

5. Suitable for PPR/PB/HDPE/PERT 20-160mm.

Optional Parts of 20-160mm Fully Automatic Electro Fusion Welding Machine

  • 1. HDPE/PVC Pipe roller(20-2000mm)
  • 2. HDPE/PVC pipe cutter(Electric Cutting Machine or Manual cutter)
20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings
20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings

Test and Debug of 20-160mm Fully Automatic Electro Fusion Welding Machine

All products will be tested before packing to ensure that the machine is in good condition, normal operation, and debugging to normal usage of the state.

Warranty, Packaging and Shipping of HDPE Welding Machine

12 Months for our welding machine under normal using conditions.

All the parts of our Welding Machine could be replaced by 80% of the original parts cost after warranty period.

All Welding Machine & part will be packaged by the export standard plywood case to protect the welding machine and all part against damage.

  • 1.Shipped by Air for urgent requirements.
  • 2.Shipped by LCL container service for less then one container, without any other requirements.
  • 3.Shipped together with our HDPE/PVC pipe and fittings in the container.
  • 4.Shipped together with your other products you ordered from China.

Packing Photos of 20-160mm Fully Automatic Electro Fusion Welding Machine

20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings

Please Contact us to Get More Details, Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Major Parameter of 20-160mm Socket Fusion Welding Machine

Plastic Pipe And Fittings Diameter Range Of Welding: 63-160mm
Major Parameter of 20-160mm Socket Fusion Welding Machine
SF160 Includes basic fra me, planing tool, heating plate, hydraulic unit, stand and trolly 包括机架，铣刀，加热板，液压站，附件支架和手推车
Fusion Range 焊接范围 Dia: 20 32 40 50 63 75 90 110 125 140 160 Package(mm)包装 Wooden Case 木箱 720X530X540
操作方式 Operating Type 手动 Manual Type Total Volume 总体积 (CBM) 0.3CBM
Butting Deviation 对接误差 ≤ 0.3mm G.W.毛重 ( Total总重) 65KG
Temperature Deviation 温度误差 ±5°C Power(W)功率
Heating plate Max Temperature 加热板最高温度 270℃ Heating Plate 加热板 1.6KW/220V
Applicable Material 适用材料 PE/PP-R/PB/PVDF/PP/MPP Total power(W) 总功率 2.2KW
Ambient Temperature 环境温度 -5～40°C Weight of Heating Plate 加热板重量 1.5KGS
Voltage(V) 电压 Frequency(Hz) 频率 220V  50Hz Thickness of heating plate(mm) 加热板厚度 20mm
Required Time for Welding Temperature 达到焊接温度所需时间 < 20min Diameter of heating plate(mm) 加热板直径 180mm
Power Plug 电源插头 Option for EN, EU, US standard

Other specifications have not been shown on our dimension chart, please CONTACT US for more information.

Please Send Email: sales@bingopipes.com. or Mobile:(WhatsApp): +86 155 15596408.

Applications of 20-160mm Socket Fusion Welding Machine

HDPE Pipe And Fittings Butt Fusion Welding Machines Provided By Us Are Extensively Used In Different Hdpe Pipeline Construction Projects Or Workshop.

20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings
HDPE Electrofusion Machine For Water Pipes HDPE Electrofusion Machine For Gas Pipes
20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings 20-160mm Socket Fusion Welding Machine for HDPE Pipe and fittings
HDPE Butt Fusion Machine For Water Supply Pipes HDPE Butt Fusion Machine For Gas Pipes
